"VECTORO"

Unlock Precision Control Without Proprietary Limits

The "VECTORO" represents a sophisticated commercial-grade motor driver and motion controller, delivering a cost-effective solution for achieving superior precision in servo control applications. It is meticulously designed to ensure compatibility with a wide range of DC and BLDC motors, empowering users to develop tailored applications with ease.

Power and Precision in Your Hands

VECTORO is packed with features designed for maximum performance and customization.

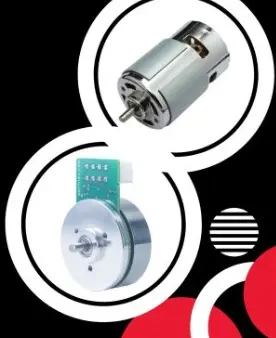

Universal Compatibility

Drives and controls a wide range of brushed DC and brushless DC (BLDC) motors from various manufacturers, offering maximum flexibility in component selection.

Advanced Motion Control Core

Powered by an ARM Cortex-M4 processor with a floating-point unit, enabling high-performance execution of torque, velocity, and position control loops.

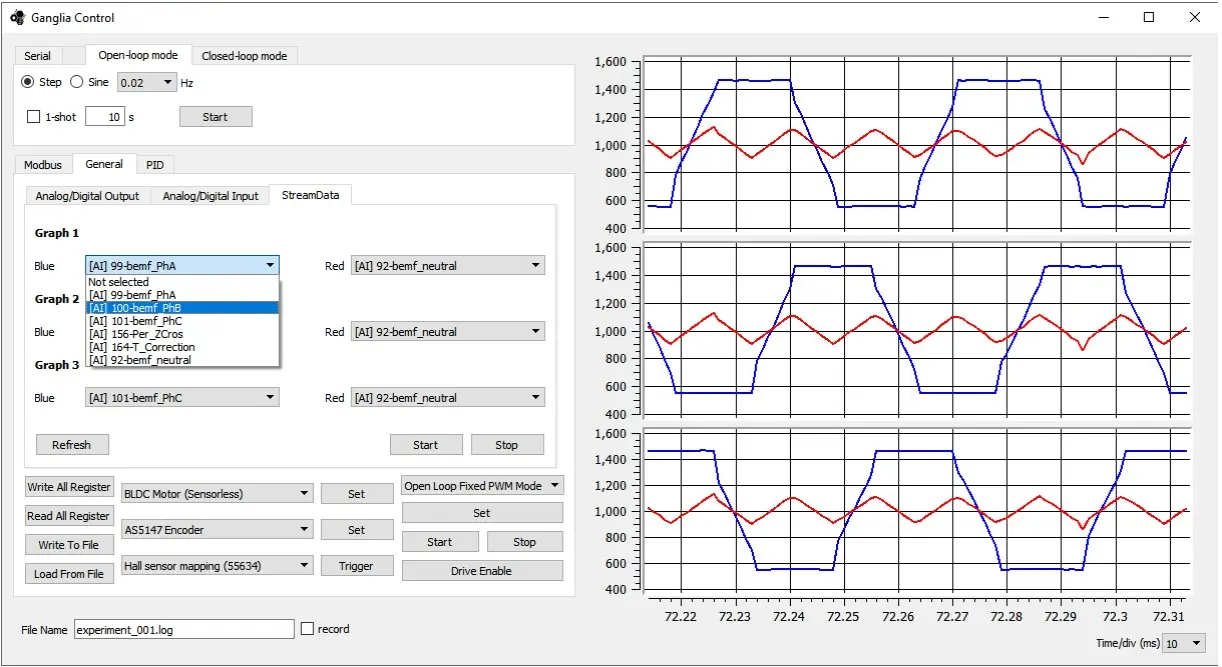

Intuitive GUI

Comes with a graphical user interface (GUI) to configure settings, monitor real-time parameter waveforms, and log data, significantly speeding up development and tuning.

Multi-Device Scalability

Features an RS-485 interface for creating a multi-axis motion control network, with support for remote firmware upgrades to all chained devices.

Break Free from the Middle Ground Trap

Hobby-grade drivers lack precision, while industrial controllers are too expensive, bulky, and lock you into a single ecosystem. VECTORO is engineered to be the perfect solution, offering industrial-grade precision with the flexibility and affordability your projects demand.

From Lab Research to Industrial Automation

VECTORO is versatile enough for any project that requires precise motion control.

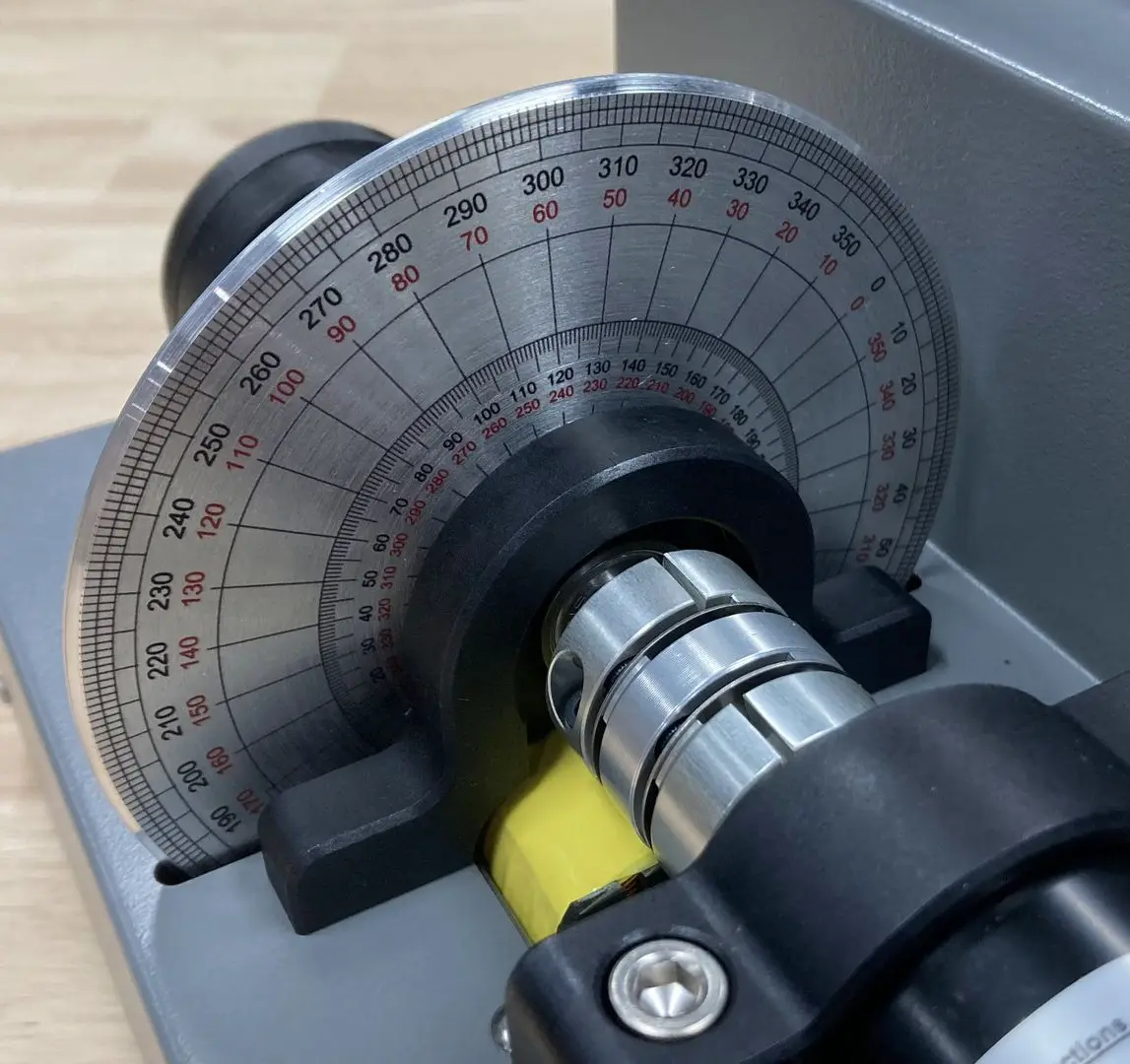

[Labaratory] Control Kit

We have developed an educational kit designed for control laboratory applications, featuring our advanced motor driver. This motor driver enables users to conduct comprehensive control experiments at a highly competitive price, making it an ideal choice for educational institutions.

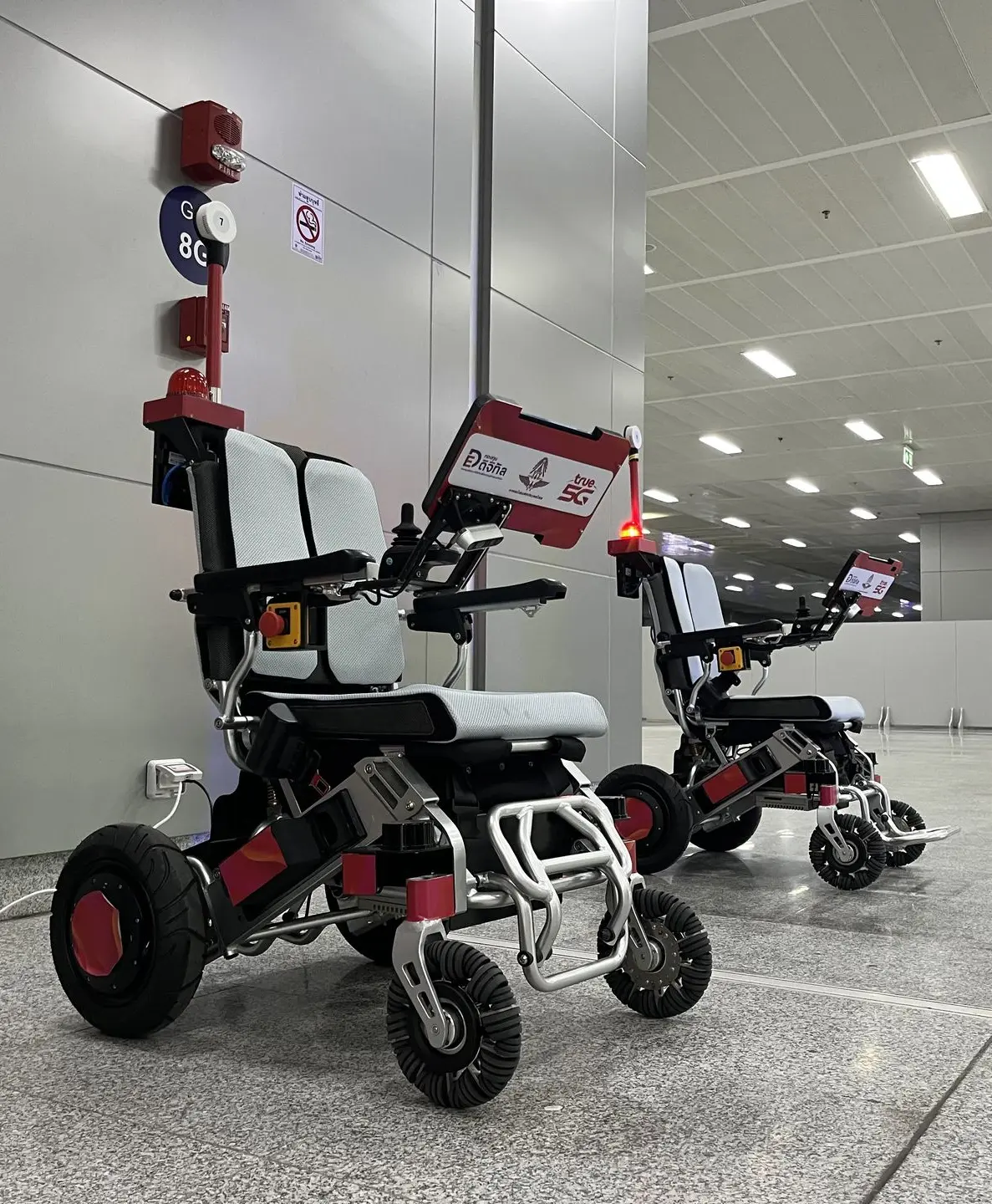

[Custom Project] Wheelchair

Our advanced motor driver is designed to seamlessly integrate into your project, allowing you to address specific requirements with ease. It is fully compatible with all existing hardware, elevating your system to a professional standard at an affordable price.

Robotics Servo Control & Industrial Automation

~~Our services are built to last, ensuring that every solution we provide is of the highest quality, bringing lasting value to your investment and ultimate customer satisfaction.~~

Specification

Parameter	Specification
Motor Types Supported	Brushed DC (DC) Brushless DC (BLDC) with hall sensor
Processor	ARM Cortex-M4 with FPU
Performance	12V-63V / 30A
Control Modes	Position, Velocity, Torque
Feedback Sources	Absolute encoder Quadrature encoder
Communication Interfaces	Modbus over RS485 (For multi-axis control, monitoring, and configuration) Micro-USB (For configuration)
Configuration	Text-formatted commands via USB or RS-485
Firmware Upgrades	Remote upgrade capability over the RS-485 chain
